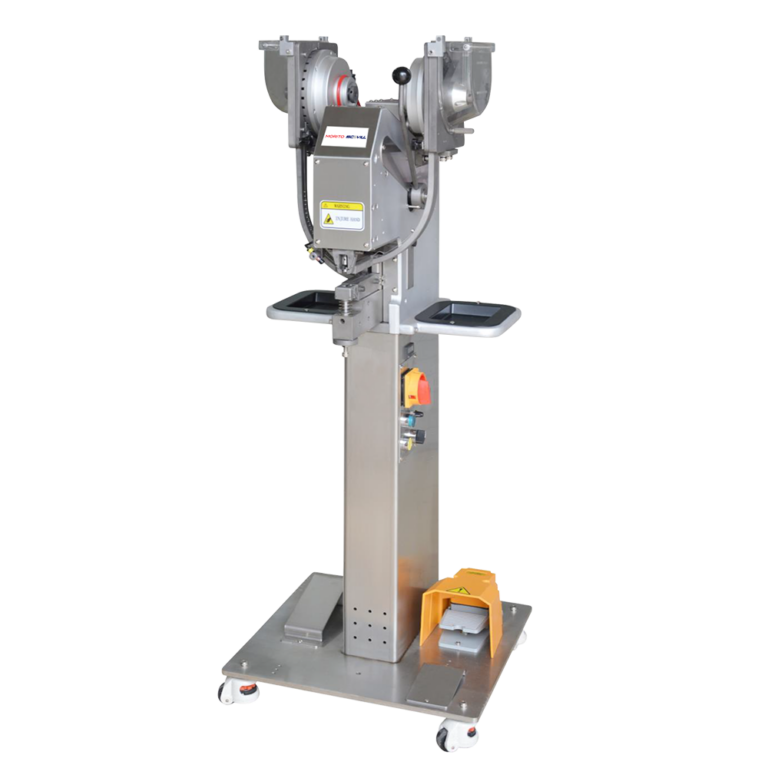

Fully-Automatic Attaching Machine Model MAC-2000L

Model
MAC-2000L
Throat Depth
4.13"
Height
15.58"
Width
19.69"
Depth
19.69"
Shipping Weight
242.5 lbs.
Speed
200 cycles/minute
Voltage
220V 1HP or 110V

The Fully-Automatic Attaching Machine Model MAC-2000L is a fully automatic attaching machine that attaches a wide range of fasteners from Morito Scovill Americas such as Durable™, Baby Durable™, Maxi-Snap™, Mighty-Snap®, Gripper®, Duramark® Buttons, Duramark® Burrs, and Plastic Snaps.

  • Ergonomic and convenient features such as a foot pedal, casters for easy movement, target light, adjustable positioning plate, binding pressure buffer and an automatic counter
  • Servo motor driven with adjustable speed, constant torque, low noise, and the ability to switch between stitch and single trip attachment modes
  • Integrated safety mechanism that will immediately and automatically shut down to protect operator’s fingers
  • Motorized supply hoppers to keep the track full and swing away from the machine for easy maintenance access
  • Excellent throat depth and clearance between the upper and lower receivers



To watch the MAC-2000L Video, click here
