DOT® Sheet Metal Grommets and Washers

Division 20

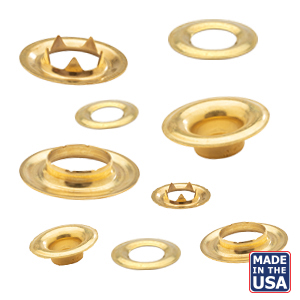

DOT® Sheet Metal Grommets and Washers

Constructed of heavy-duty materials, DOT® Grommets and Washers are designed to provide reliable hole reinforcement. These high-quality grommets and washers conform to stringent commercial specifications. Scovill also offers a wide range of setting options to meet customers’ unique requirements.

  • Made of durable, high-quality brass
  • May be used interchangeably with Plain, Tooth or Neck Washers:

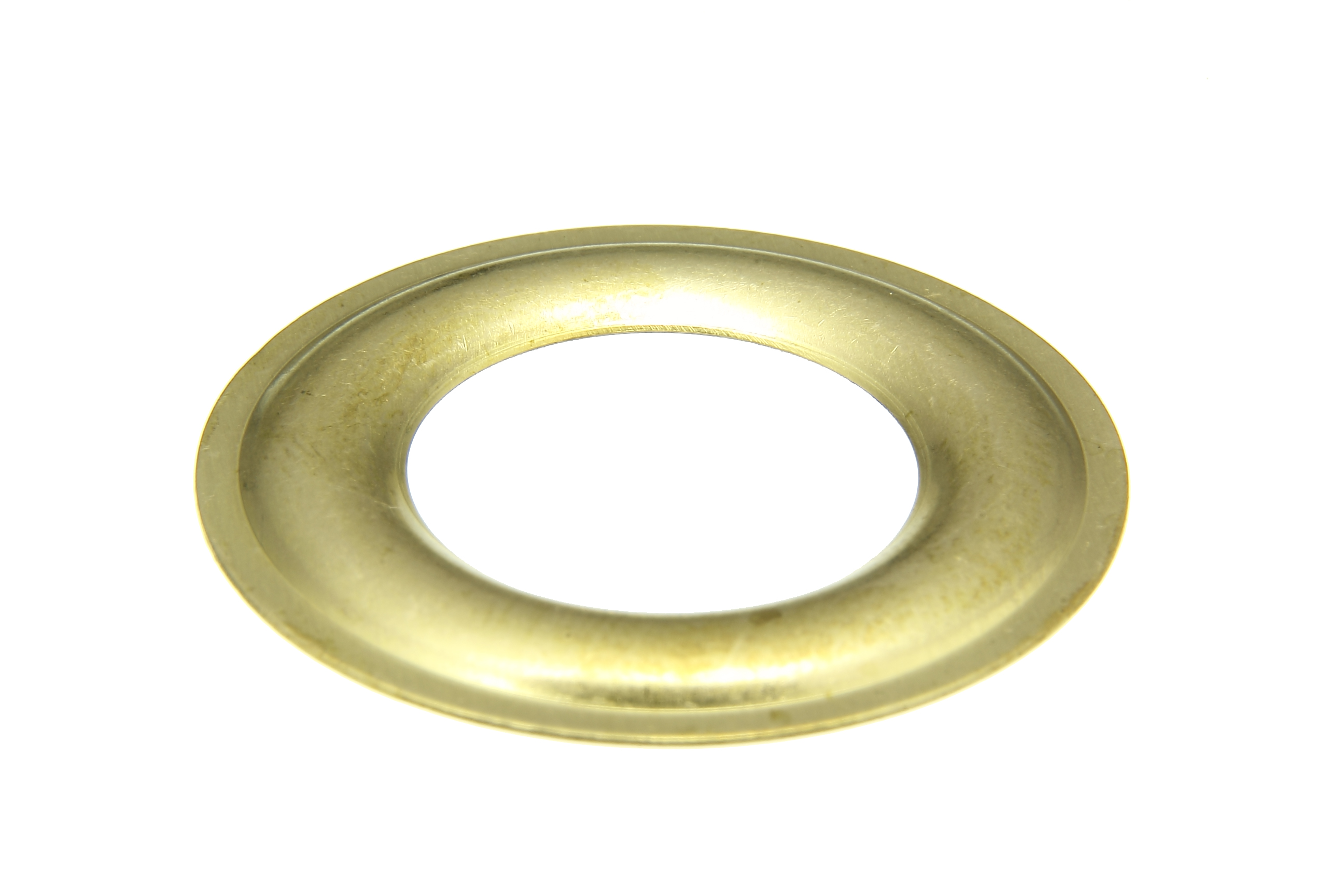

  • Plain Washers are used as basic reinforcement to provide support for the grommet setting

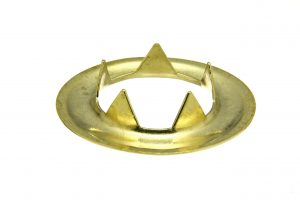

  • Tooth Washers provide a firmer, tighter grip, particularly when used on woven material

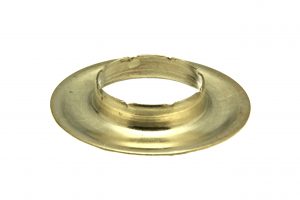

  • Neck Washers reinforce the hole in a barrel-to-barrel setting and facilitate automatic feed setting
Request A Quote
Request A Sample
  • Applications

      Medical, Flags and Banners, Leather and Luggage, Tie-downs and Tarps

      Image Applications
      Image Applications
  • Specifications
      Part No.
      Size
      OD
      ID
      LUF
      Hole Size

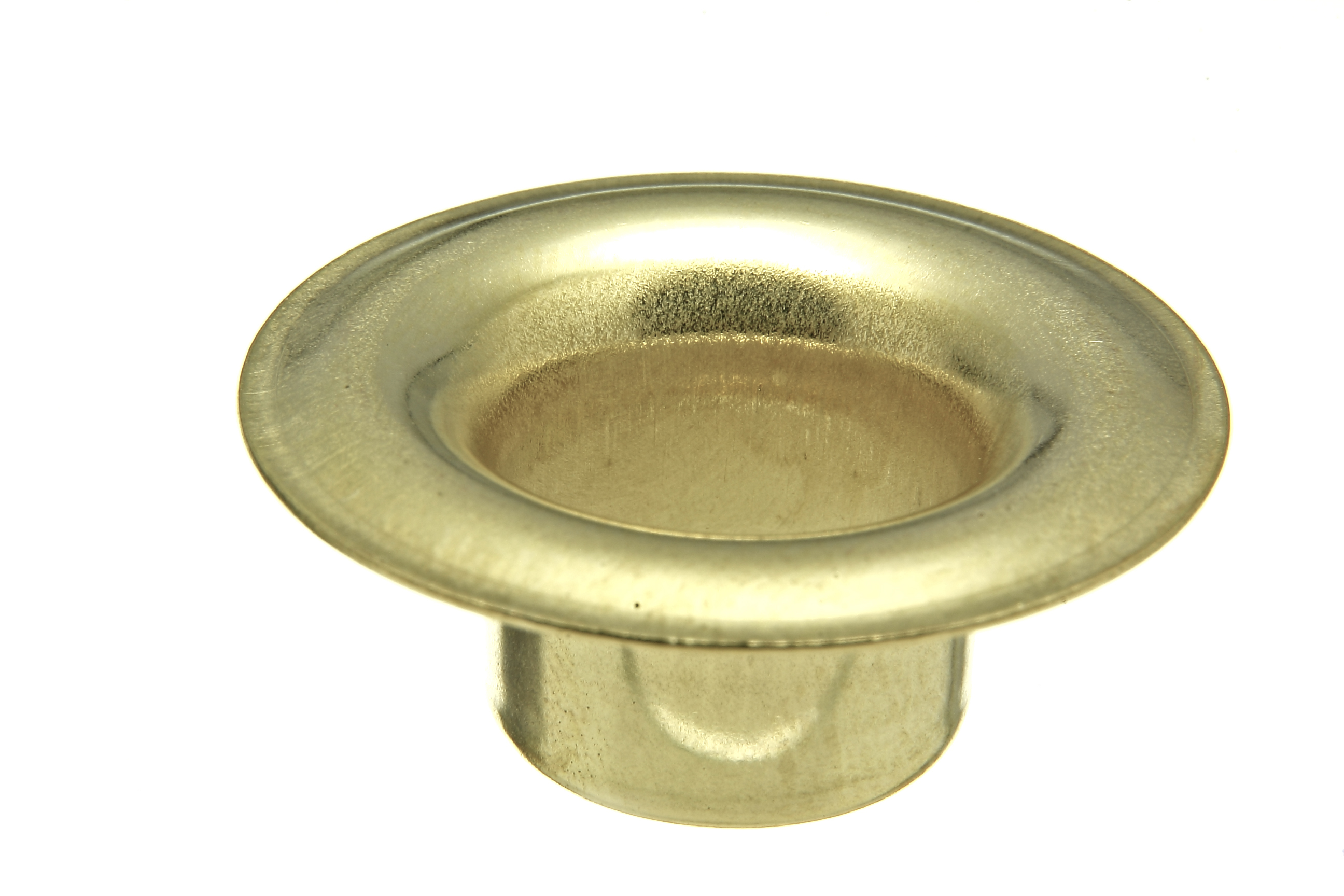

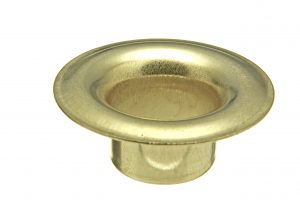

      Sheet Metal Grommet
      20-10900
      #00
      0.425
      0.176
      0.135
      3/16
      Sheet Metal Grommet
      20-00900
      #0
      0.545
      0.240
      0.175
      1/4
      Sheet Metal Grommet
      20-00901
      #1
      0.687
      0.286
      0.185
      9/32
      Sheet Metal Grommet
      20-009J1
      #1J
      0.680
      0.563
      9/32
      Sheet Metal Grommet
      20-00902
      #2
      0.815
      0.362
      0.215
      3/8
      Sheet Metal Grommet
      20-009J2
      #2J
      0.840
      0.260
      3/8
      Sheet Metal Grommet
      20-00903
      #3
      0.970
      0.433
      0.235
      7/16
      Sheet Metal Grommet
      20-00904
      #4
      1.050
      0.486
      0.374
      1/2
      Sheet Metal Grommet
      20-00905
      #5
      1.220
      0.594
      0.330
      5/8
      Sheet Metal Grommet
      20-00906
      #6
      1.750
      0.232
      13/16
      Plain Washer
      20-10800
      #00
      0.460
      0.218
      Plain Washer
      20-00800
      #0
      0.546
      0.285
      Plain Washer
      20-00801
      #1
      0.700
      0.359
      Plain Washer
      20-008J1
      #1J
      0.700
      0.359
      Plain Washer
      20-00802
      #2
      0.835
      0.453
      Plain Washer
      20-008J2
      #2J
      0.835
      0.460
      Plain Washer
      20-008JN2
      #2JN
      0.840
      0.460
      Plain Washer
      20-00803
      #3
      0.955
      0.530
      Plain Washer
      20-00804
      #4
      1.064
      0.585
      Plain Washer
      20-00805
      #5
      1.205
      0.740
  • Additional Information

      Available Finishes:
      All DOT® Grommets and Washers–except for Stainless Steel–are available in the following standard finishes: Brass, Nickel and Black. Custom finishes and sprayed enamel finishes are also available upon request along with custom color matching. Minimum order quantities are required for certain colors.

  • Resource Downloads
  • Attachment Options
For more information, or to talk with a representative, contact us today.
Request A Quote Request A Sample
